NewYork-Presbyterian celebrated the opening of the NewYork-Presbyterian David H. Koch Center, a world-class ambulatory care center that combines innovative clinical approaches and cutting-edge technology to provide exceptional care and a seamless patient experience.

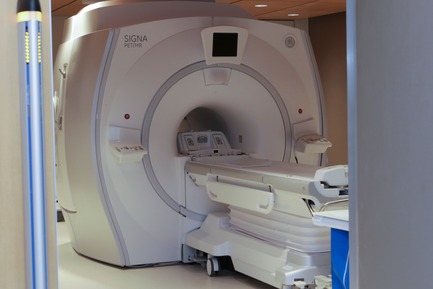

At the David H. Koch Center, patients will receive integrated care and undergo complex procedures on an outpatient basis. The facility’s primary services include outpatient surgery, endoscopy, interventional radiology, diagnostic imaging, radiation oncology, infusion, and digestive disease treatments. With a focus on the human experience, the program provides a comprehensive suite of services for patients in a contemporary and soothing environment. The design of the leading-edge facility is the result of a collaboration among HOK as architect, Ballinger as medical architect and Pei Cobb Freed & Partners as consulting architect for building envelope and lobby.

A Warm and Welcoming Entry

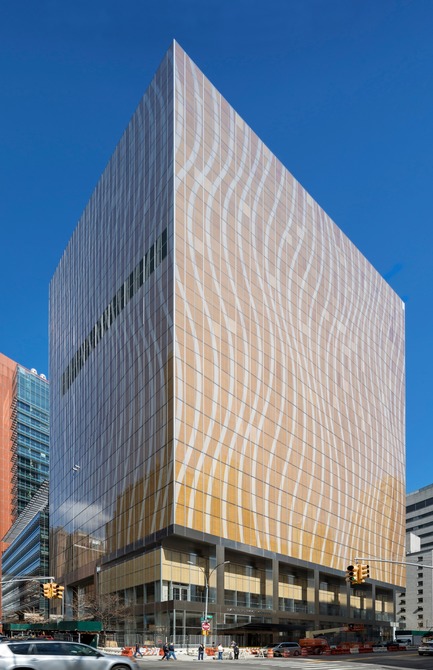

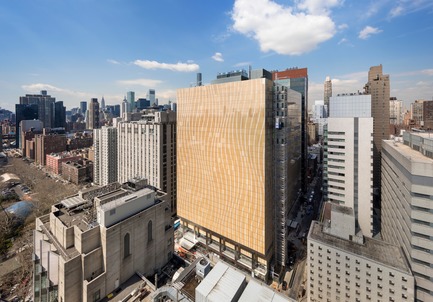

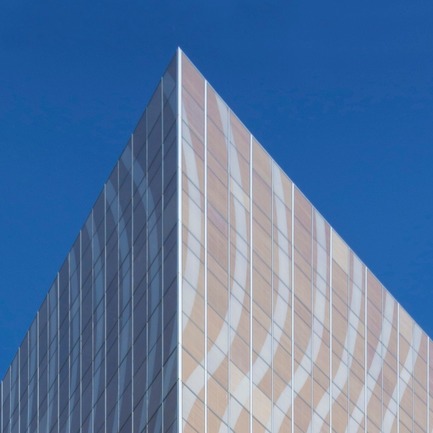

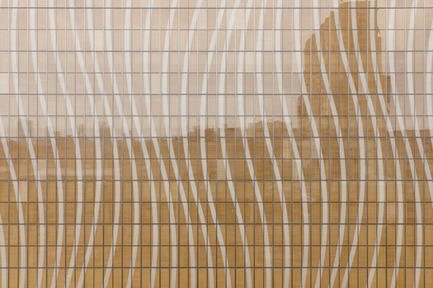

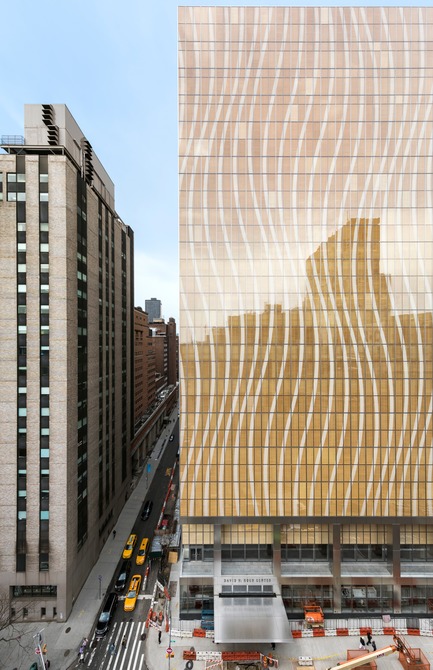

A strong presence on Manhattan’s Upper East Side, the building represents a new urban context for NewYork-Presbyterian. With its wood screen and glazed facade, the center offers a warm, inviting and transparent face to the community. The first of its kind at this scale, the insertion of a wood screen into the triple-glazed assembly along with the undulating pattern give the curtain wall its distinctive and rich architectural character.

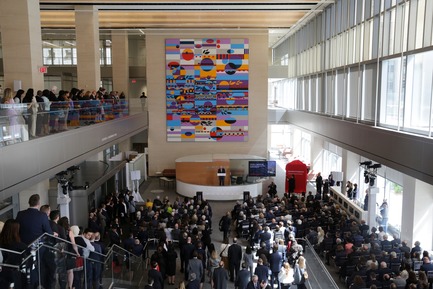

Patient- and family-centered care is at the forefront of the building’s holistic design and programming. Whether entering by foot on York Avenue or via car at the drive-through drop-off, the gracious lobby provides a respite from the surrounding congested streets and sidewalks. A wood ceiling in the lobby creates a calming environment enhanced by extensive daylight and vivid artwork. The wood, stone and natural materials throughout the interior spaces of the facility evoke comfort and ease. A prominent reception desk and clear wayfinding facilitate a streamlined and intuitive journey for all guests to minimize stress.

The dramatic stair encourages healthy movement and leads to quiet zones, lounges and dining options on the second floor, presenting a choice for patients, family and visitors. Influenced by hospitality settings, the modern dining area includes restaurant-quality offerings with healthy food, a full-juice and coffee bar and a variety of seating environments.

Enhanced Care for Patients

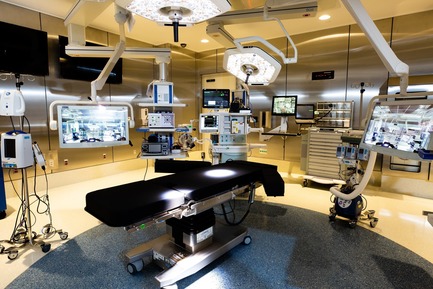

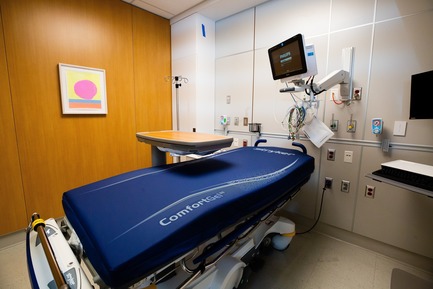

Clinical floors continue the timeless aesthetic with a soothing, quiet palette of materials including wood and stone. A typical clinical floor has a sky lobby, 12 flexible procedure rooms and 36 private prep and recovery rooms. Prep and recovery occur in the same dedicated room, which helps minimize patient movements and provide peace of mind for the patient, family and care team.

Circulation is clear, with a separation of “on-stage” and “off-stage” flows so patients and families can travel along the light-filled perimeter corridors with clear wayfinding, and staff can move efficiently throughout the building, minimizing disruption to guests.

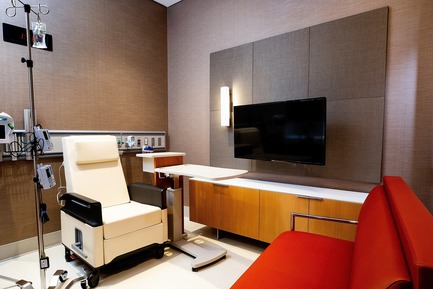

Infusion and radiation oncology areas, typically found in basement areas, are co-located on the 4th floor of the building. This allows patients and staff access to natural light, an example of the extraordinary accommodations made at NYP David H. Koch Center to prioritize patient-centered care over other considerations. The infusion area features a variety of treatment environments ranging from private rooms to warm and inviting community spaces.

A fully integrated art program throughout the building hosts a diversity of works at key locations as positive distractions for patients undergoing medical treatment.

Flexible, Adaptable and Sustainable — “Framework for the Future”

Each floor is designed with standardized procedure rooms and patient areas, allowing for the flexible use of rooms and the ability to adapt to changing technology over time. Critical building systems and infrastructure, that are essential to maintaining building operations during an emergency are located above grade to protect and isolate them from hazards. Designed for a minimum of LEED Silver certification, the center features a green roof, high performance building skin and high efficiency mechanical systems.

With a dedicated street level entrance and occupying the lower three floors of the NYP David H. Koch Center, the Integrative Health and Wellbeing program will open in the summer of 2018. Slated to open in 2020, the NewYork-Presbyterian Alexandra Cohen Hospital for Women and Newborns will occupy the top six floors and will be completed without interrupting operations to the Center.

DATA SHEET

NewYork-Presbyterian David H. Koch Center

Architect: HOK

Medical Architect: Ballinger

Consulting Architect (building envelope and lobby): Pei Cobb Freed & Partners

Interior Design: HOK and Ballinger

Structural Engineer: Thornton Tomasetti

MEP: Syska Hennesy Group

Construction Manager: Turner Construction Company

Building size: 734,000 gsf/68,000 gsm

No. of Stories: 17 stories (includes 2 ½ mechanical floors) + 2 cellar levels

Parking for 128 cars with stackers

Floor plate: Typical floor plate floors 4–15 are 42,000 sf nom. and floors 16–18 are 40,000 sf nom.

Height: 320 feet/97.5 meters

Minimum LEED target: Silver

Project completion: April 2018

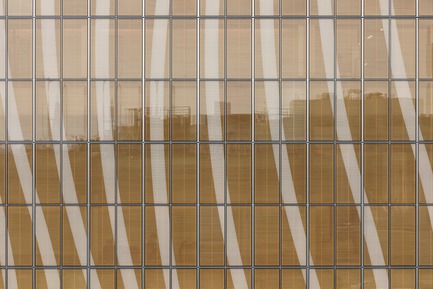

Exterior envelope: 225,000 sf of triple-glazed insulated curtain wall, with integrated internal obeche wood screen and silk-screened frit inside the outer layer

NewYork-Presbyterian David H. Koch Center

6 Clinical Floors

3 Procedure Floors

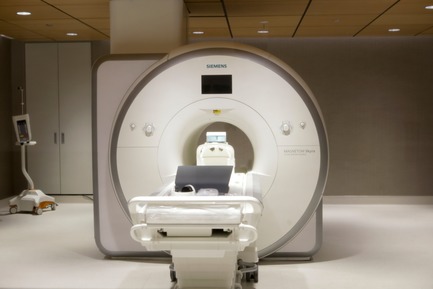

16 Fixed Imaging Modalities

102 private prep and recovery rooms

29 Procedure Rooms

14 Infusion Positions

3 Radiation Therapy Rooms

56 Exam Rooms

1 Shared Lounge for all Procedure Staff

12 Templated & Single-Handed operating rooms (ambulatory surgery)

Integrative Health and Wellbeing Program

4 floors: 1 support staff floor, 1 entry lobby and reception floor, 1 patient education floor, 1 integrative health & wellbeing floor

11 Exam rooms

7 Therapy Rooms

3 Consulting Rooms

18 Workstations

2 Patient Education Rooms

1 Large Multipurpose Room

Project completion: June 2018 Open

NewYork-Presbyterian Alexandra Cohen Hospital for Women and Newborns

1 LDR, 1 NICU and 3 Antepartum/Postpartum patient bed floors + a partial floor of OB Ultrasound and Antepartum Testing Services (non-Article 28)]

6 floors: 1 OB Ultrasound and Antepartum Testing Services partial floor, 1 MCATU/ 1 LDR/ C-section, 1 NICU, 3 Antepartum/Postpartum patient bed floors.

75 private rooms (antepartum and postpartum beds) and well-baby bassinets

60 NICU positions (42 single and 9 double for twins; positions = isolettes)

20 Maternal Critical Assessment and Treatment Unit rooms—12 Triage and 8 Prep/Recovery

16 labor and delivery rooms (NYP program:  17 delivery rooms, 3 c-section and 1 OR; 17^th delivery room is in the c-section suite)

5 Cesarean section operative suites

15 Ultrasound rooms and 8 Antepartum Testing Rooms

NICU Multipurpose OR and MRI

Project completion: Jul 2020 (Start of Clinical Care)
